Name: Economical Autonics TCN4M-24R Double DIN W72*H72mm Display Digital PID Temperature Controllers
Brand: Economical Autonics TCN4M-24R Double DIN W72*H72mm Display Digital PID Temperature Controllers
SKU: TCN serise
Price: 1 USD
Availability: InStock
Rating: 4.6 (122 reviews)

Kenmerken Galerij Productomschrijving Verzoek om een Citaat

Kenmerken

Specificaties

Warranty: 1 years, 1 Year

Model Number: TCN serise

Certificate: CE ROHS

Power supply: 100-240VAC~ 50/60Hz

Size: DIN W72*H72mm

Display method: 4-digit 7-segment LED

Control method: ON/OFF control, P, PI, PD, PID control

Input specification: Thermocouple/RTD: DPt100Î©, Cu50Î©

Sampling cycle: 100ms

Control output: Relay(250VAC~ 3A) or SSR drive(12VDC)

Weight: 133g

Basis informatie

Certificering: CE ROHS

Model Number: TCN serise

Betalen & Verzenden Algemene voorwaarden

Packaging Details: 1)Standard packaging:Carton(package charge free) 2)As your request(additional packing charge )

Productomschrijving

Product Description

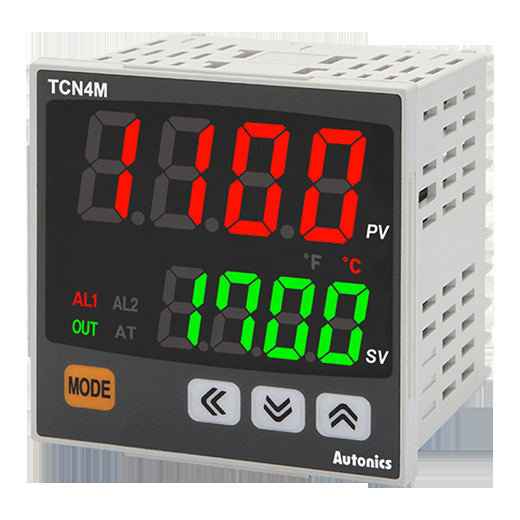

Autonics TCN4M-24R Economical Dual Display Digital PID Temperature Controllers

Specification

Display method	4-digit 7-segment LED
Control method	ON/OFF control, P, PI, PD, PID control
Input specification	Thermocouple: K(CA), J(IC), T(CC), R(PR), S(PR), L(IC) RTD: DPt100Ω, Cu50Ω
Sampling cycle	100ms
Control output	Relay(250VAC~ 3A) or SSR drive(12VDC ) [ON/OFF]
Option output	Alarm 1/2
Power supply	100-240VAC~ 50/60Hz
Approval	CE C
Display accuracy_RTD	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Display accuracy_Thermocouple	•At room temperature(23ºC ± 5ºC):(PV ± 0.5% or ±1ºC, select the higher one) ± 1-digit •Out of room temperature range:(PV± 0.5% or ±2ºC, select the higher one)± 1-digit
Hysteresis(adjustable sensitivity)	1 to 100℃/℉(0.1 to 50.0℃/℉) variable
Proportional band	0.1 to 999.9℃/℉
Integral time	0 to 9999 sec
Derivative time	0 to 9999 sec
Control period	0.5 to 120.0 sec
Manual reset	0.0 to 100.0%
Environment_Ambient temperature	-10 to 50℃, storage: -20 to 60℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Insulation type	Double insulation or reinforced insulation(mark: , dielectric strength between the measuring input part and the power part: AC power 2kV, AC/DC Power 1kV)
Weight	Approx. 203g(approx. 133g)

Product Features

Dual digital display (PV/SV)
100ms high-speed sampling rate and ±0.5% display accuracy
Switch between relay output and SSR drive output
SSR drive output (SSRP function) control options : ON/OFF control, cycle control, phase control
Compact design with large display panels for easier reading
Connector plug types offer easier wiring and maintenance
